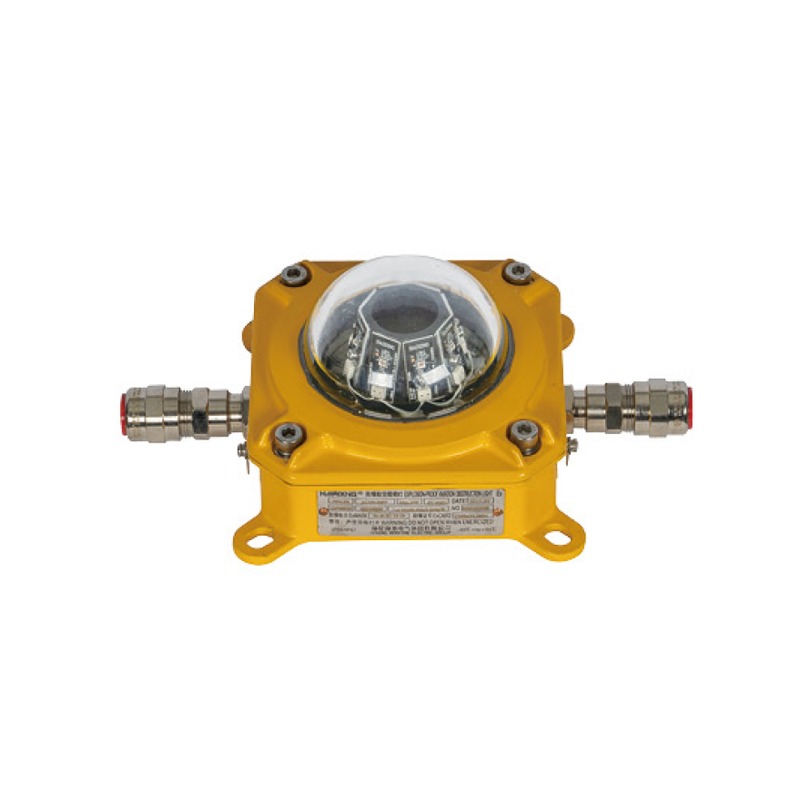

The light complies with A / B low light intensity obstruction requirement of ICAO standard and CAP168 specification. It is suitable for Zone 1 and Zone 2 location in explosive gas environment such as offshore oil platforms, oil tanker, chemical tanker and oil storage tank. It serves as a warning for aircraft and is suitable for obstacles and facilities with a height less than 45 meter, as well as for use in conjunction with medium light intensity obstruction light when height exceed 45 meters.
| Type | CXDJ-3FB (10) | CXDJ-3FB (32) | CXDJ-3FB (200) |
|---|---|---|---|
| EX Mark | Ex db II C T6 Gb | ||
| Rated Voltage | AC100~240V 50/60Hz, DC24V | ||
| Power | Max. 10W | ||
| Horizontal / Vertical Arc | 360° / ±3° | ||
| Luminous Intensity | 0-30°≥10cd | 2-10°≥32cd | 5-8°≥200cd; 0-15°≥50cd |
| Illuminant | LED | ||
| Illuminant Colour | Red | ||
| Protection Class | IP66 / IP67 | ||
| Installation | Base Mounting Type | ||
| Ambient Temperature | -40°C ~ +55°C | ||
| Material | Stainless Steel | ||
| Lampshade Material | Toughened Glass | ||
| Weight | 4.5kg | ||
| Certification | ABS | ||
