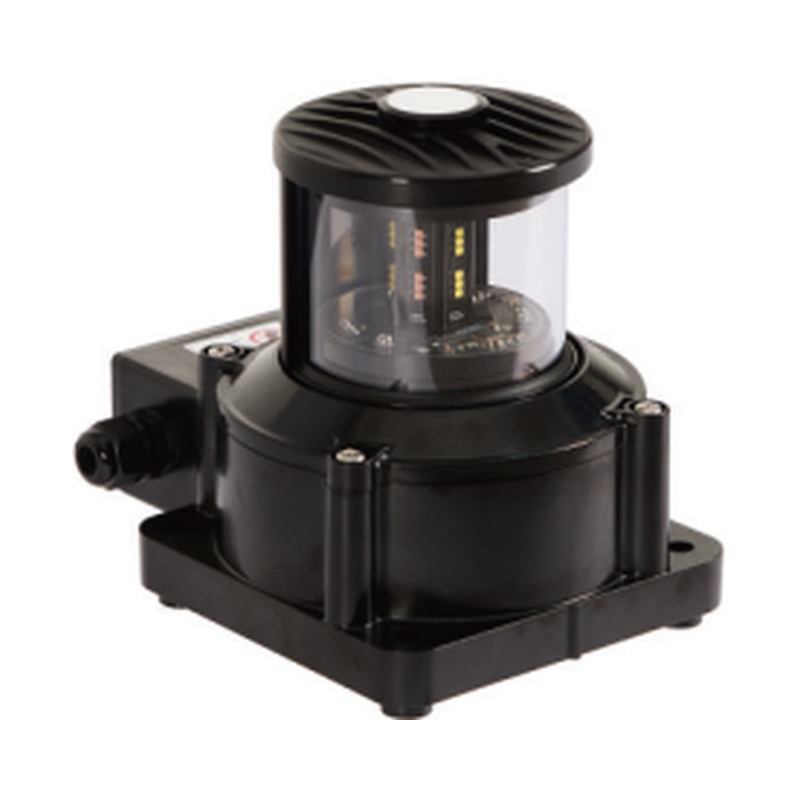

LED Navigation Signal Light, CXH-2PL Series applied to the ships with a length above 20m but below 50m
| Name | Starboard Light | Port Light | Masthead Light | Stern Light | All-Round Light |
|---|---|---|---|---|---|
| Type | CXH1-2PL | CXH2-2PL | CXH3-2PL | CXH4-2PL | CXH6-2PL |
| Rated Voltage | DC24V | ||||
| Power | Max 1W | Max 1W | Max 8W | Max 1W | Max 1W |
| Illuminant | LED | ||||
| Illuminant Lifespan | 100,000h | ||||
| Colour | Green | Red | White | White / Yellow | White / Red / Green / Yellow |
| Horizontal Arc | 112.5° | 112.5° | 225° | 135° | 360° / 180° |
| Visible Distance | 2nm | 2nm | 5nm | 2nm | 2nm |
| Protection Class | IP66 / 67 | ||||
| Ambient Temperature | -30°C ~ +55°C | ||||
| Material | Engineering Plastic | ||||
| Weight | 1.3kg | ||||
| Option | Flashing Light CXH14-2PL (120 / 150 / 180 flash / min) | ||||
