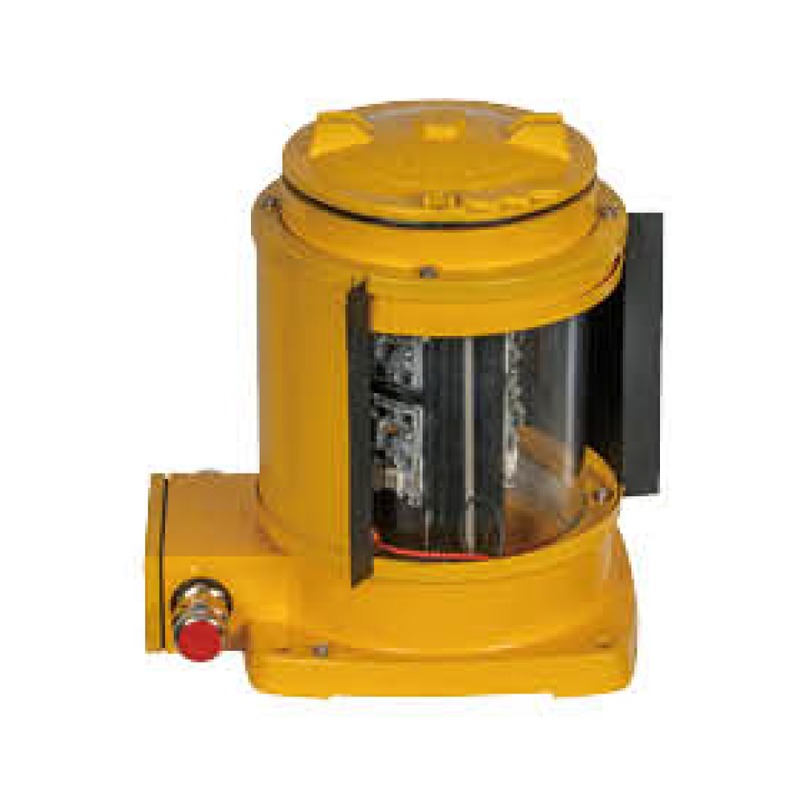

LED Explosion Proof Navigation Signal Light, CXH-102FB Series applied to the ships with the length of 50m or above.
| Name | Starboard Light | Port Light | Masthead Light | Stern Light | All-Round Light |
|---|---|---|---|---|---|
| Type | CXH1-102FBG | CXH2-102FBR | CXH3-102FBW | CXH4-102FB* | CXH6-102FB* |
| EX Standard | Ex db eb II C T6 Gb | ||||
| Rated Voltage | AC100~240V 50/60Hz, DC24V | ||||
| Power | 2*6W | 2*6W | 2*8W | 2*6W | 2*6W |
| Illuminant | LED | ||||
| Illuminant Lifespan | 100,000h | ||||
| Colour | Green | Red | White | White / Yellow | White / Red / Green / Yellow |
| Horizontal Arc | 112.5° | 112.5° | 225° | 135° | 360° / 180° |
| Visible Distance | 3nm | 3nm | 6nm | 3nm | 3nm |
| Protection Class | IP66 | ||||
| Ambient Temperature | -30°C ~ +55°C | ||||
| Material | Stainless Steel | ||||
| Weight | 8.5kg | ||||
| Certification | ATEX & IECEX | ||||
Share your product specifications, required quantity or project details, and our team will assist you with suitable product information and availability.
