| Conductor: | CH | Tinned stranded annealed copper conductor, Class 2 or Class5, IEC60228 |
| Insulation: | J | XLPE, IEC60092-360 |
| Ovr. Screen: | Alum. Foil tape 100% coverage with tinned drain wire (Optional) | |
| Inner Sheath: | PJ | Halogen free flame-retardant thermoset compound (SHF2) |
| PF | Halogen free flame-retardant thermoplastic compound (SHF1) | |
| Armour: | 8 | Tinned copper wire braid |
| 9 | Galvanised steel wire braid | |
| Outer Sheath: | 5 | Halogen free flame-retardant thermoset compound (SHF2) |
| 6 | Halogen free flame-retardant thermoplastic compound (SHF1) | |
| SC | Flame retardant IEC60332-1-2 and IEC60332-3-22 Cat A |

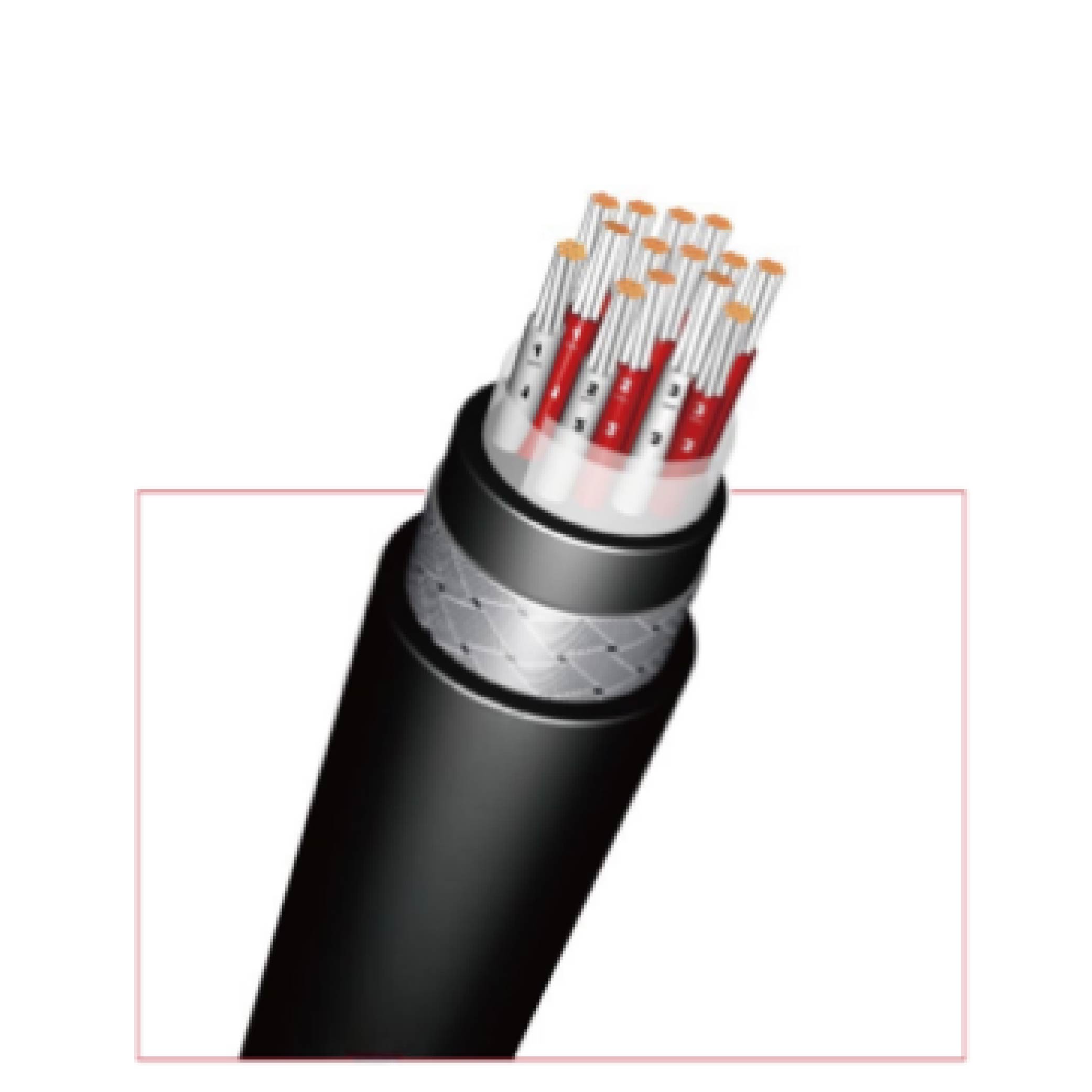

Type: CHJPJ85/SC / CHJPJ95/SC / CHJPF/SC / CHJPF86/SC / CHJPF96/SC
Application: Armoured Instrumentation or Communication cable for fixed installation in most area and on open deck in ships and offshore units. Similar to TICI(C), TIOI(C) etc.
Rated Voltage: 150/250V
Max. Conductor Temperature: 90°C
