| Conductor: | C | Tinned stranded annealed copper conductor, Class 2 or Class5, IEC60228 |
| Screen: | Extruded semiconductive layer | |
| Insulation: | J | XLPE, IEC60092-360 |
| Screen: | Extruded semiconductive layer wrapped with copper tape | |
| Inner Sheath: | PJ | Halogen free flame-retardant thermoset compound (SHF2) |
| PF | Halogen free flame-retardant thermoplastic compound (SHF1) | |
| Armour: | 8 | Tinned copper wire braid |
| Outer Sheath: | 5 | Halogen free flame-retardant thermoset compound (SHF2) |
| 6 | Halogen free flame-retardant thermoplastic compound (SHF1) | |
| SC | Flame retardant IEC60332-1-2 and IEC60332-3-22 Cat A |

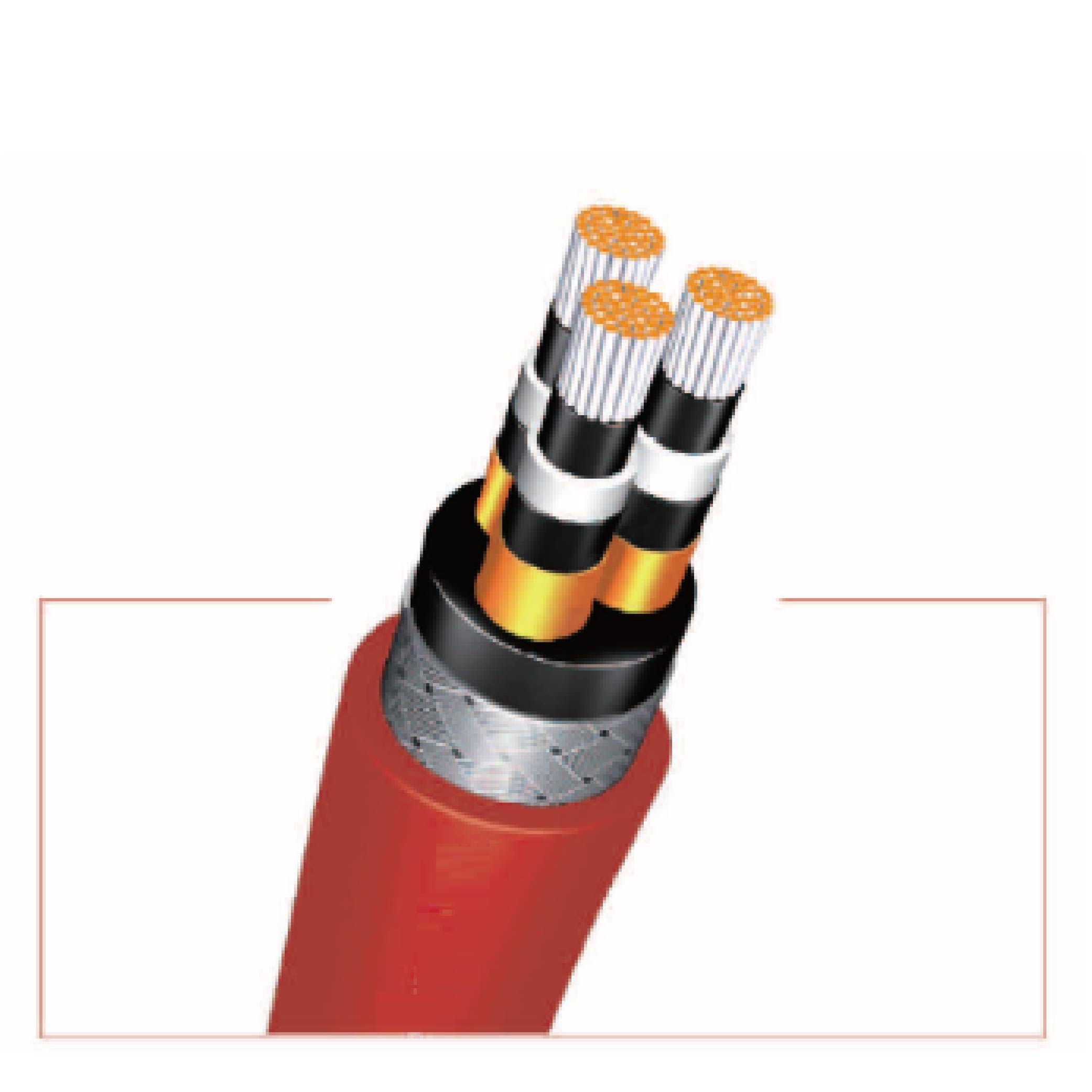

Type: CJPJ85/SC / CJPF86/SC
Application: Armoured medium voltage power cable for fixed installation in most area and on open deck in ships and offshore units. Specially designed cables for medium voltage up to 20kV.
Rated Voltage: 3.6.6kV, 6/10kV, 8.7/15kV, 12/20kV
Max. Conductor Temperature: 90°C
