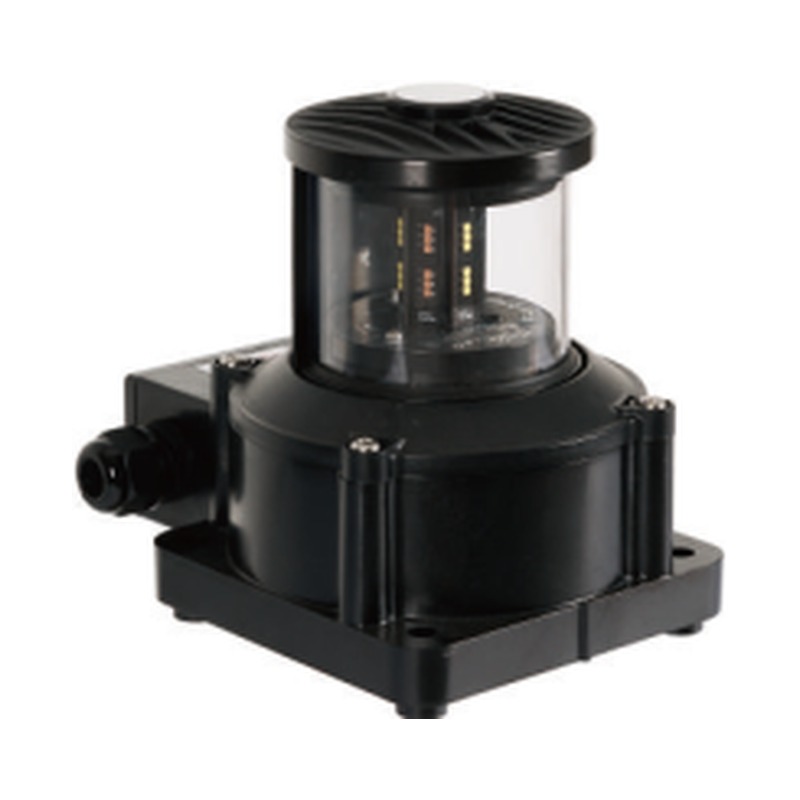

LED Navigation Signal Light, CXH-105PL Series applied to the ships with the length of 50m or above.
| Name | Starboard Light | Port Light | Masthead Light | Stern Light | All-Round Light |
|---|---|---|---|---|---|
| Type | CXH1-105PL | CXH2-105PL | CXH3-105PL | CXH4-105PL | CXH6-105PL |
| Rated Voltage | AC100~240V 50/60Hz, DC24V | ||||
| Power | 2*3W | 2*3W | 2*15W | 2*3W | 2*3W |
| Illuminant | LED | ||||
| Illuminant Lifespan | 100,000h | ||||
| Colour | Green | Red | White | White / Yellow | White / Red / Green / Yellow |
| Horizontal Arc | 112.5° | 112.5° | 225° | 135° | 360° / 180° |
| Visible Distance | 3nm | 3nm | 6nm | 3nm | 3nm |
| Protection Class | IP66 / 67 | ||||
| Ambient Temperature | -30°C ~ +55°C | ||||
| Material | Engineering Plastic | ||||
| Weight | 1.4kg | ||||
| Option | Flashing Light CXH14-105PL (120 / 150 / 180 flash / min) | ||||
