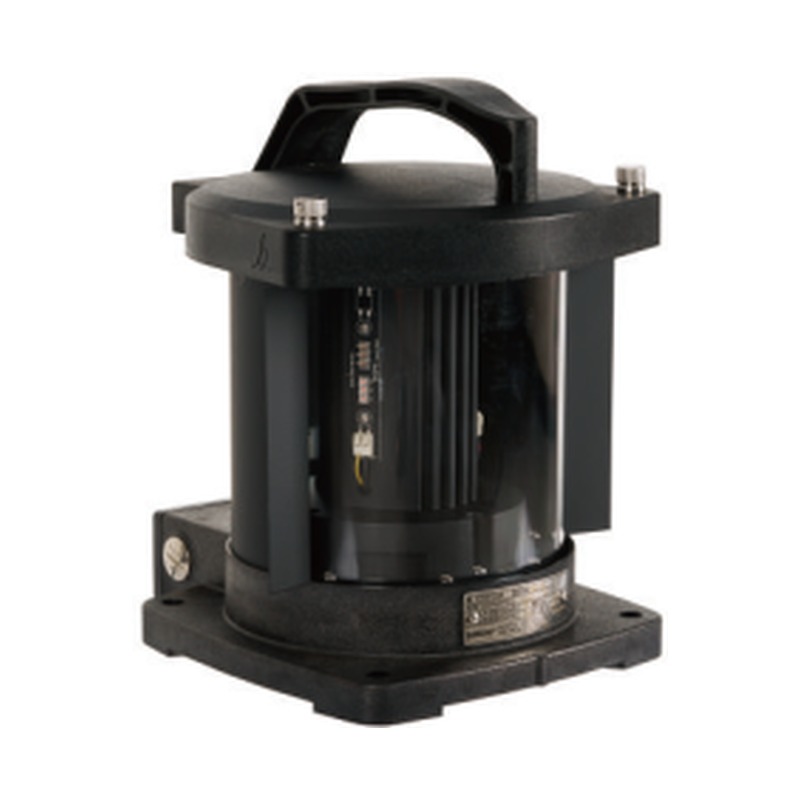

LED Navigation Signal Light, CXH-12PL Series applied to the ships with the length of 50m or above.
| Name | Starboard Light | Port Light | Masthead Light | Stern Light | All-Round Light |
|---|---|---|---|---|---|
| Type | CXH1-12PL | CXH2-12PL | CXH3-12PL | CXH4-12PL | CXH6-12PL |
| Rated Voltage | AC100~240V 50/60Hz, DC24V | ||||
| Power | 6W | 6W | 6W | 6W | 6W |
| Illuminant | LED | ||||
| Illuminant Lifespan | 100,000h | ||||
| Colour | Green | Red | White | White / Yellow | White / Red / Green / Yellow |
| Horizontal Arc | 112.5° | 112.5° | 225° | 135° | 360° / 180° |
| Visible Distance | 3nm | 3nm | 6nm | 3nm | 3nm |
| Protection Class | IP66 / 67 | ||||
| Ambient Temperature | -30°C ~ +55°C | ||||
| Material | Engineering Plastics | ||||
| Weight | 2.8kg | ||||
