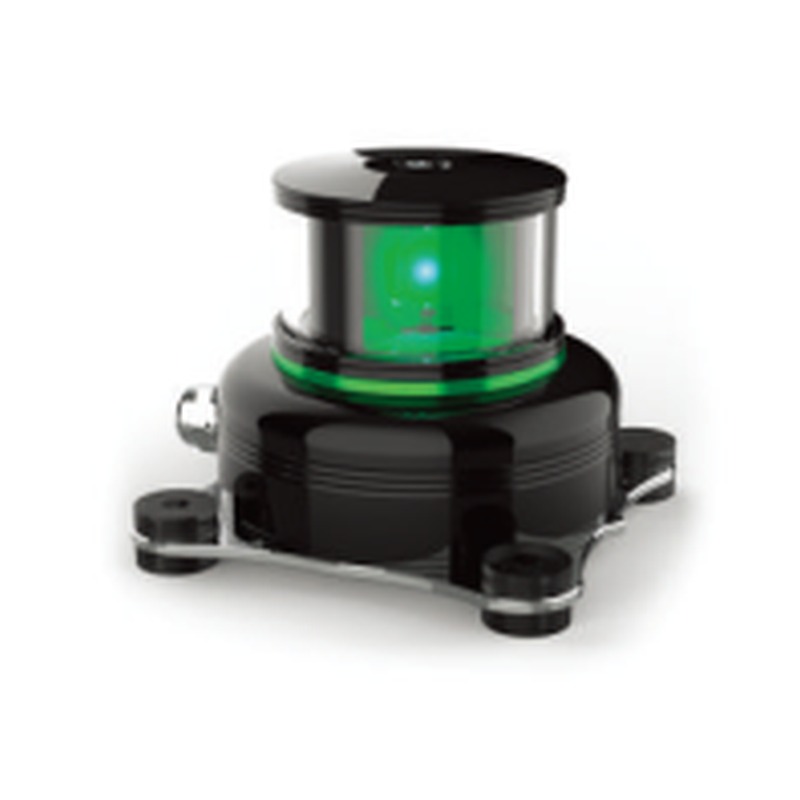

Navigation Signal Light, CXH-3L Series applied to the ships with the 12M or less.
| Name | Starboard Light | Port Light | Masthead Light | Stern Light | All-Round Light |
|---|---|---|---|---|---|
| Type | CXH1-3L | CXH2-3L | CXH3-3L | CXH4-3L | CXH6-3L |
| Rated Voltage | DC24V | ||||
| Power | Max 1W | Max 1W | Max 2W | Max 2W | Max 2W |
| Illuminant | LED | ||||
| Illuminant Lifespan | 100,000h | ||||
| Colour | Green | Red | White | White / Yellow | White / Red / Green / Yellow |
| Horizontal Arc | 112.5° | 112.5° | 225° | 135° | 360° |
| Visible Distance | 1nm | 1nm | 2nm | 2nm | 2nm |
| Protection Class | IP66 | ||||
| Ambient Temperature | -30°C ~ +55°C | ||||
| Material | Engineering Plastic | ||||
| Weight | 1.2kg | ||||
| Option | Seat-mounted Type, Bracket-mount Type, Hanging Type | ||||
