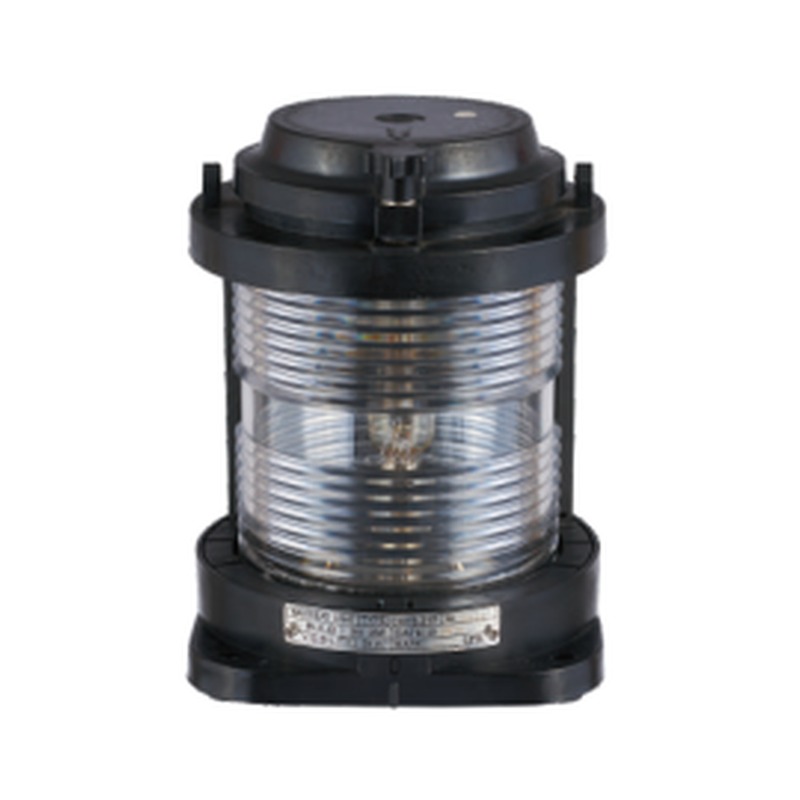

Navigation Signal Light, CXH-21P Series applied to the ships with the 12M and above but below 50m
| Name | Starboard Light | Port Light | Masthead Light | Stern Light | All-Round Light |
|---|---|---|---|---|---|
| Type | CXH1-21P | CXH2-21P | CXH3-21P | CXH4-21P | CXH6-21P |
| Rated Voltage | DC12 / 24V | ||||
| Power | 25W | ||||
| Illuminant | Incandescent Lamp | ||||
| Lamp Holder | BAY15d | ||||
| Colour | Green | Red | White | White / Yellow | White / Red / Green / Yellow |
| Horizontal Arc | 112.5° | 112.5° | 225° | 135° | 360° |
| Visible Distance | 2nm | 2nm | 5nm | 2nm | 2nm |
| Protection Class | IP56 | ||||
| Ambient Temperature | -30°C ~ +55°C | ||||
| Material | Stainless Steel | ||||
| Weight | 1.2kg | ||||
