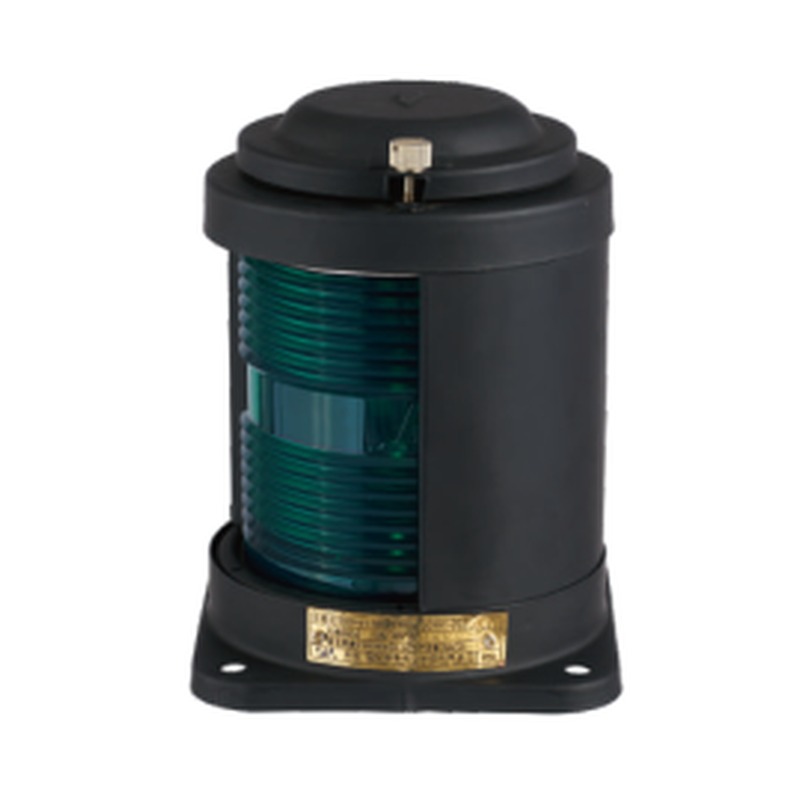

Navigation Signal Light, CXH-2S Series applied to the ships with the 12M and above but below 50m
| Name | Starboard Light | Port Light | Masthead Light | Stern Light | All-Round Light |
|---|---|---|---|---|---|
| Type | CXH1-2S | CXH2-2S | CXH3-2S | CXH4-2S | CXH6-2S |
| Rated Voltage | DC24V | ||||
| Power | 30W | ||||
| Illuminant | Incandescent Lamp | ||||
| Lamp Holder | B15d | ||||
| Colour | Green | Red | White | White / Yellow | White / Red / Green / Yellow |
| Horizontal Arc | 112.5° | 112.5° | 225° | 135° | 360° |
| Visible Distance | 2nm | 2nm | 5nm | 2nm | 2nm |
| Protection Class | IP56 | ||||
| Ambient Temperature | -30°C ~ +55°C | ||||
| Material | Stainless Steel | ||||
| Weight | 1.5kg | ||||
Share your product specifications, required quantity or project details, and our team will assist you with suitable product information and availability.
